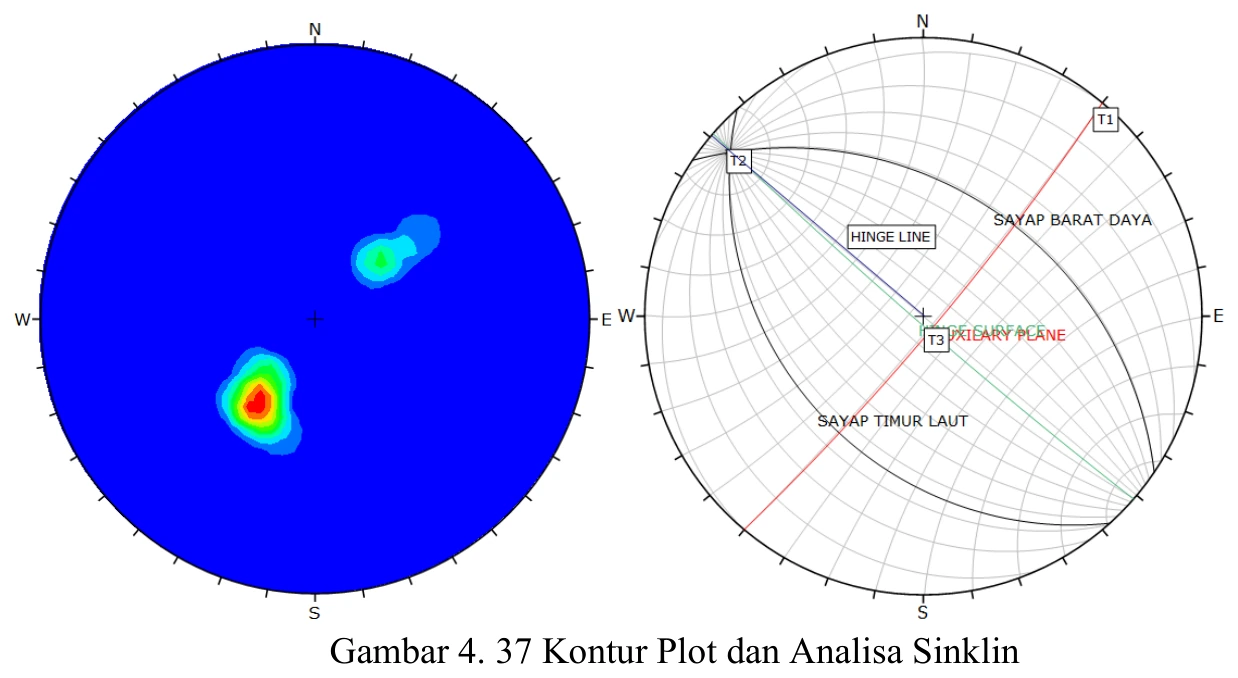

Syncline stereographic analysis
The syncline stereonet requires the same discipline as the anticline analysis: balanced limb sampling, consistent right-hand-rule notation, a defensible girdle fit and an uncertainty measure for the calculated fold axis.
SOURCE-LED TECHNICAL READING
Geological interpretation and evidential boundary
The syncline stereonet requires the same discipline as the anticline analysis: balanced limb sampling, consistent right-hand-rule notation, a defensible girdle fit and an uncertainty measure for the calculated fold axis. Local drag near faults or bedding rotation within damage zones can bias regional fold geometry, so structurally disturbed readings should be identified and sensitivity-tested rather than silently pooled. The derived axis should align with mapped closures and the geological cross-section within measurement error. Where it does not, non-cylindrical folding, multiple deformation phases or misassigned limb data become credible alternatives. The stereonet should expose that diagnostic tension rather than present a single exact orientation as self-validating.
