Petrel · 14 · Seismic structural interpretation

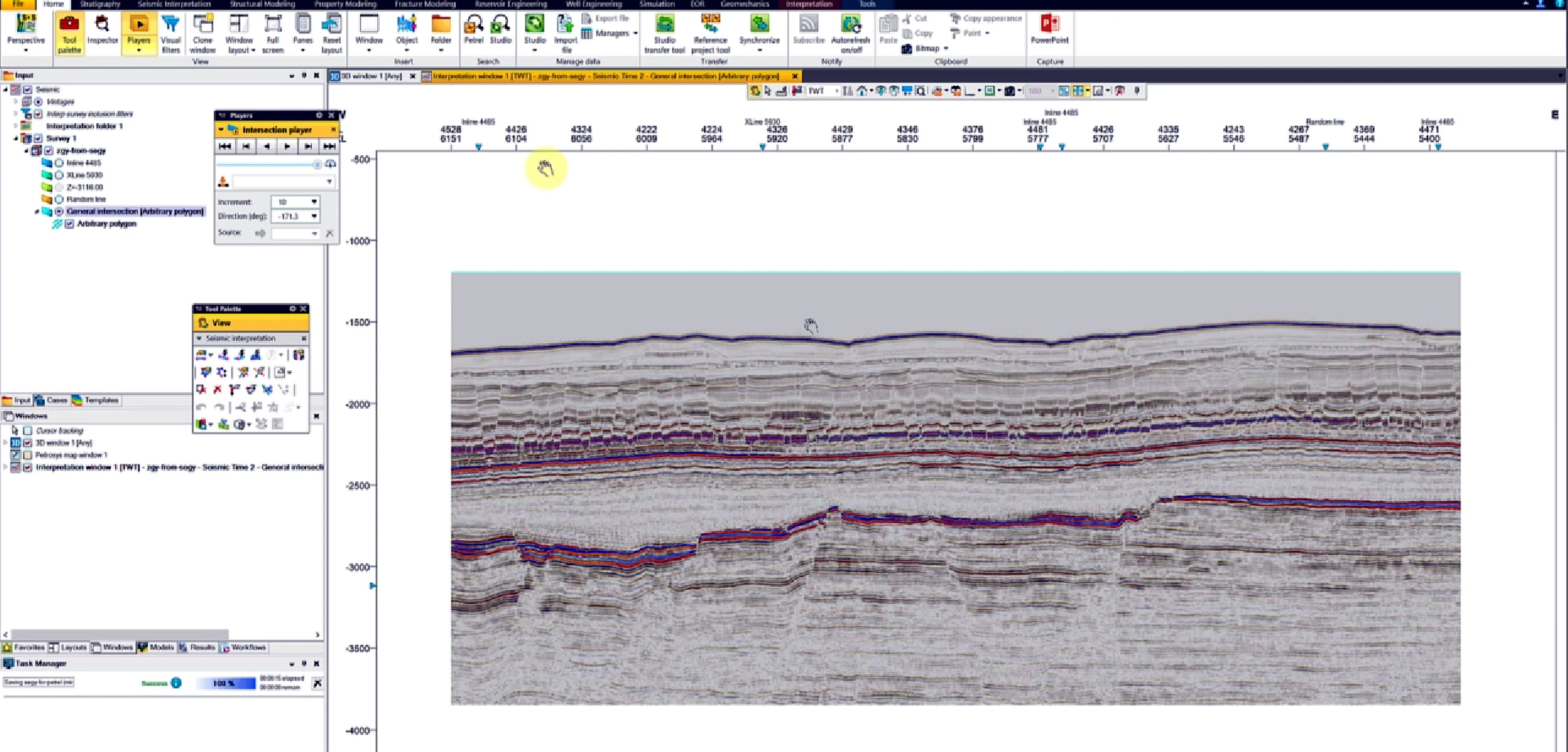

2D seismic section with multi-horizon interpretation
2D seismic section with multi-horizon interpretation is documented in Petrel at the 14 · seismic structural interpretation stage. 2D seismic section with multi-horizon interpretation is documented in Petrel at the 14 · seismic structural interpretation stage.
Process stage
A vertical seismic section carries several interpreted horizons, allowing reflector continuity and structural relief to be followed along one line.
Technical reading
This establishes the initial horizon framework before the interpretation is checked in intersecting sections and three dimensions.
Role in the modelling sequence
Two-dimensional seismic interpretation and multi-horizon picking.
- Petrel
- Seismic interpretation
- Structural framework QC
Source record
Original figure caption: 2D seismic section with multi-horizon interpretation.
- Source
- Source image or document
- Quality
- HD
- Record ID
- petrel-seis-120251
