Petrel · 48 · Seismic structural interpretation

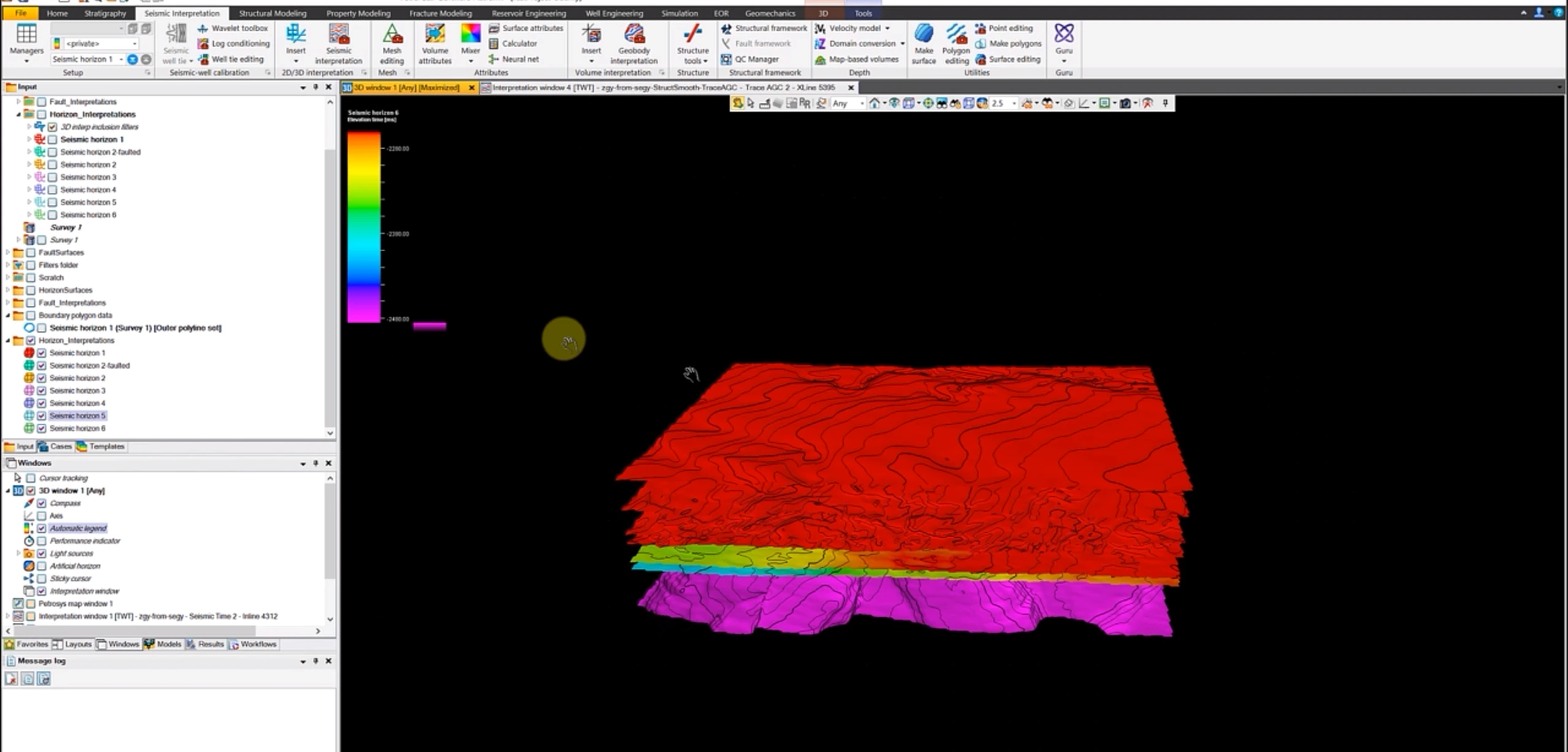

Selected horizon stack emphasising vertical separation
Selected horizon stack emphasising vertical separation is documented in Petrel at the 48 · seismic structural interpretation stage. Selected horizon stack emphasising vertical separation is documented in Petrel at the 48 · seismic structural interpretation stage.
Process stage
Several interpreted horizon surfaces are stacked and contoured to review stratigraphic order, vertical separation and local surface shape.
Technical reading
The stack is checked for crossing horizons, unrealistic spacing and smoothing artefacts before grid construction.
Role in the modelling sequence
Multi-horizon stacking, contour review and stratigraphic consistency.
- Petrel
- Seismic interpretation
- Structural framework QC
Source record
Original figure caption: Selected horizon stack emphasising vertical separation.
- Source
- Source image or document
- Quality
- HD
- Record ID
- petrel-seis-121915
