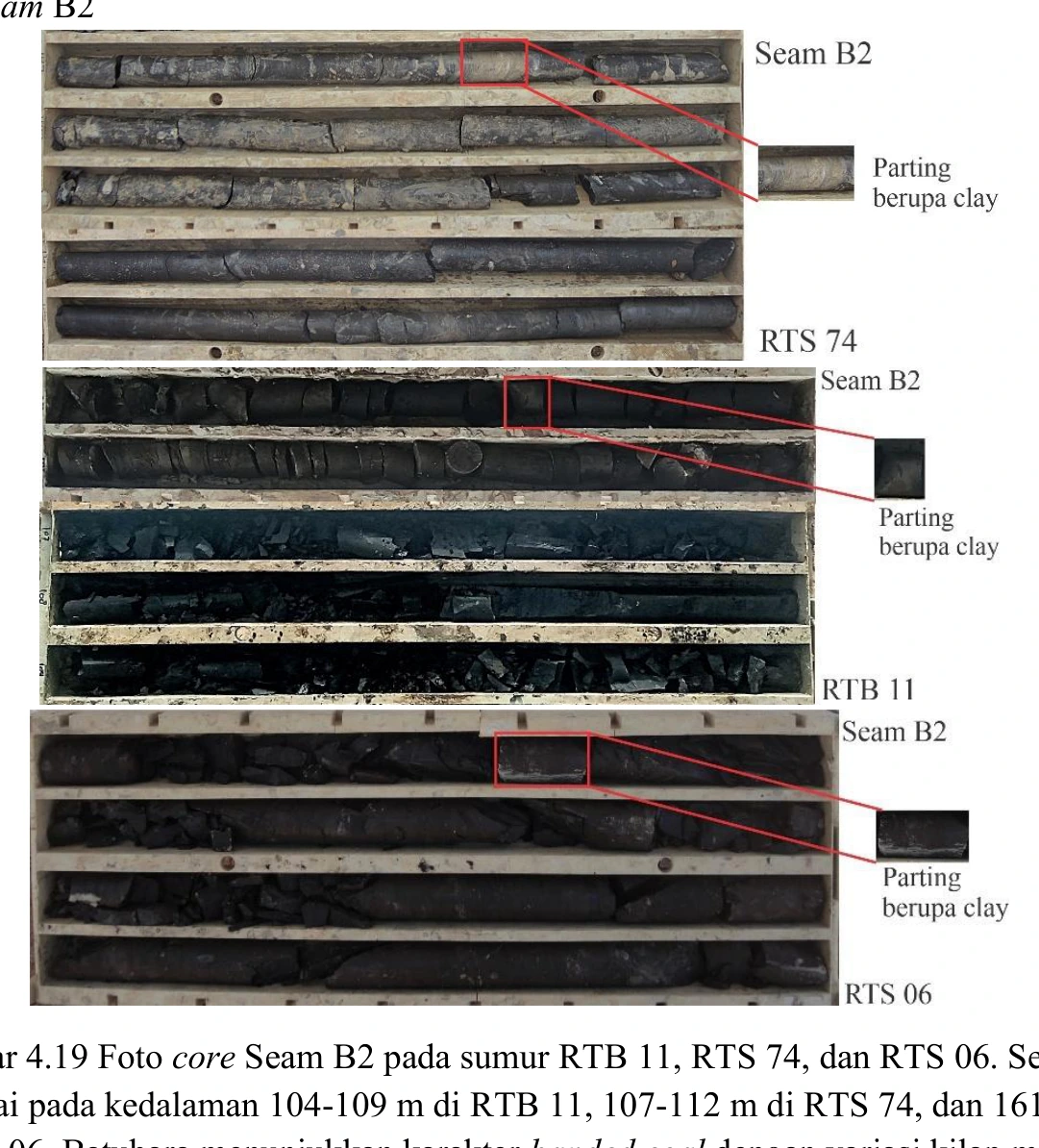

Core photographs — Seam B2
The panel correlates Seam B2 at approximately 104–109 m in RTB 11, 107–112 m in RTS 74 and 161–165 m in RTS 06. Across those three wells the source treats it as a roughly 4–5 m banded-coal interval.
SOURCE-LED TECHNICAL READING
Geological interpretation and evidential boundary
The panel correlates Seam B2 at approximately 104–109 m in RTB 11, 107–112 m in RTS 74 and 161–165 m in RTS 06. Across those three wells the source treats it as a roughly 4–5 m banded-coal interval. In the thesis evidence chain, the photograph records recovered material and superposition but does not directly demonstrate between-well continuity. Core-scale banding and partings may be described visually; coal rank, peat affinity and quality cannot be inferred without the laboratory dataset. Correlation through three boreholes is strongest where the photographed contacts coincide with the same gamma and density markers in depth; recovery loss, fragmentation and depth mismatch must be ruled out before a thickness difference is treated as geological. Where this panel also occurs in the internship report, the duplication is treated as traceable reuse rather than replication.
- Source
- Private thesis source vault · Chapter IV record
- Location in source
- PDF page 105
- Image quality
- Source scan
- Record ID
- thesis-4-19
