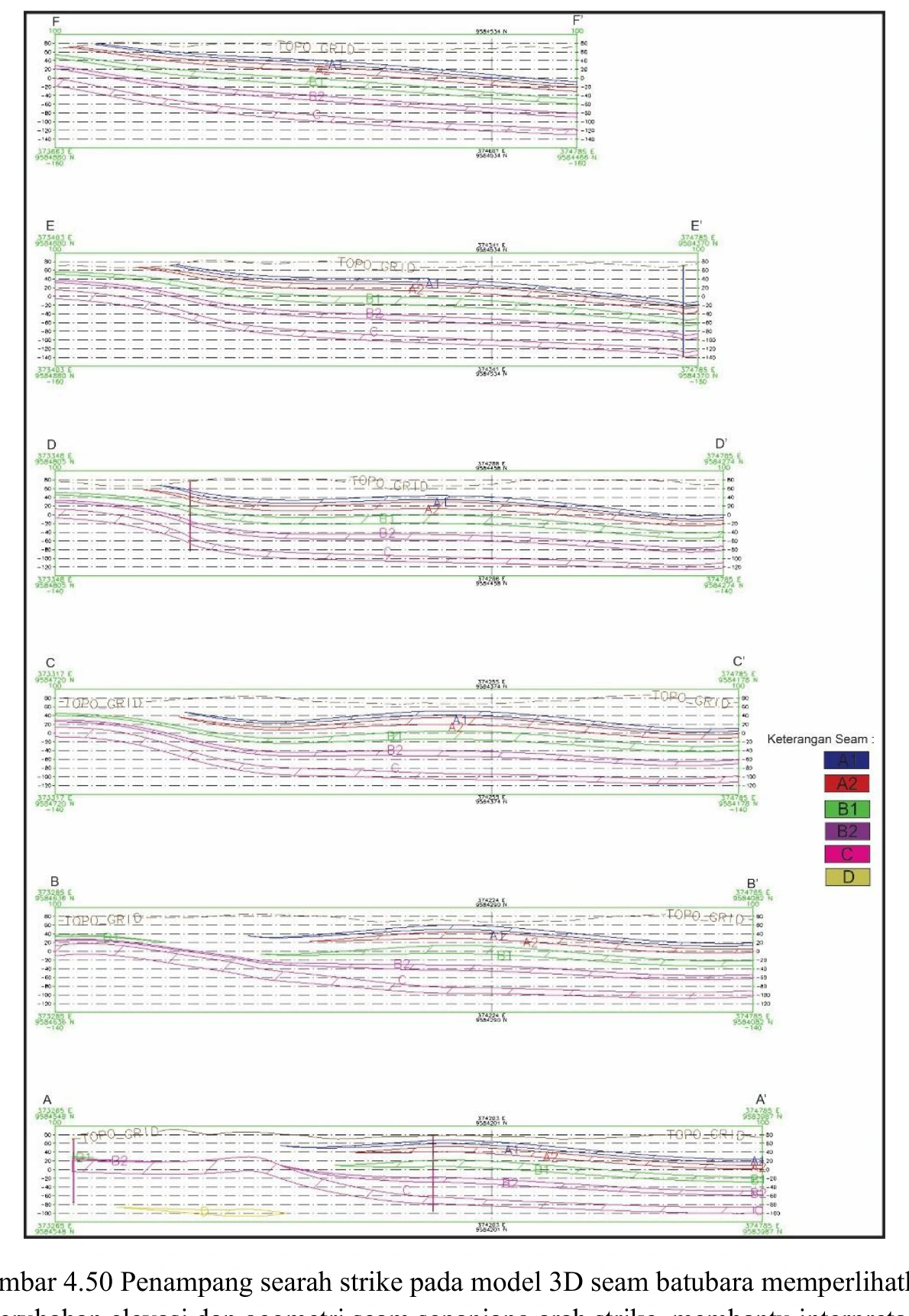

Strike-oriented section through the three-dimensional seam model
The strike-oriented section should display comparatively small apparent dip if its orientation is genuinely close to strike. Departures from that expectation may record seam undulation, structural complexity, changing strike or simply a section that is oblique to the local surface.
SOURCE-LED TECHNICAL READING
Geological interpretation and evidential boundary
The strike-oriented section should display comparatively small apparent dip if its orientation is genuinely close to strike. Departures from that expectation may record seam undulation, structural complexity, changing strike or simply a section that is oblique to the local surface. The figure is therefore a quality-control view: it tests lateral elevation and thickness continuity without pretending that a nominal strike direction is constant throughout Pit N. Section azimuth, vertical exaggeration and borehole intersections are essential for interpreting the apparent geometry.
