RTS 06 Stratigraphic Panel — Sheet 40

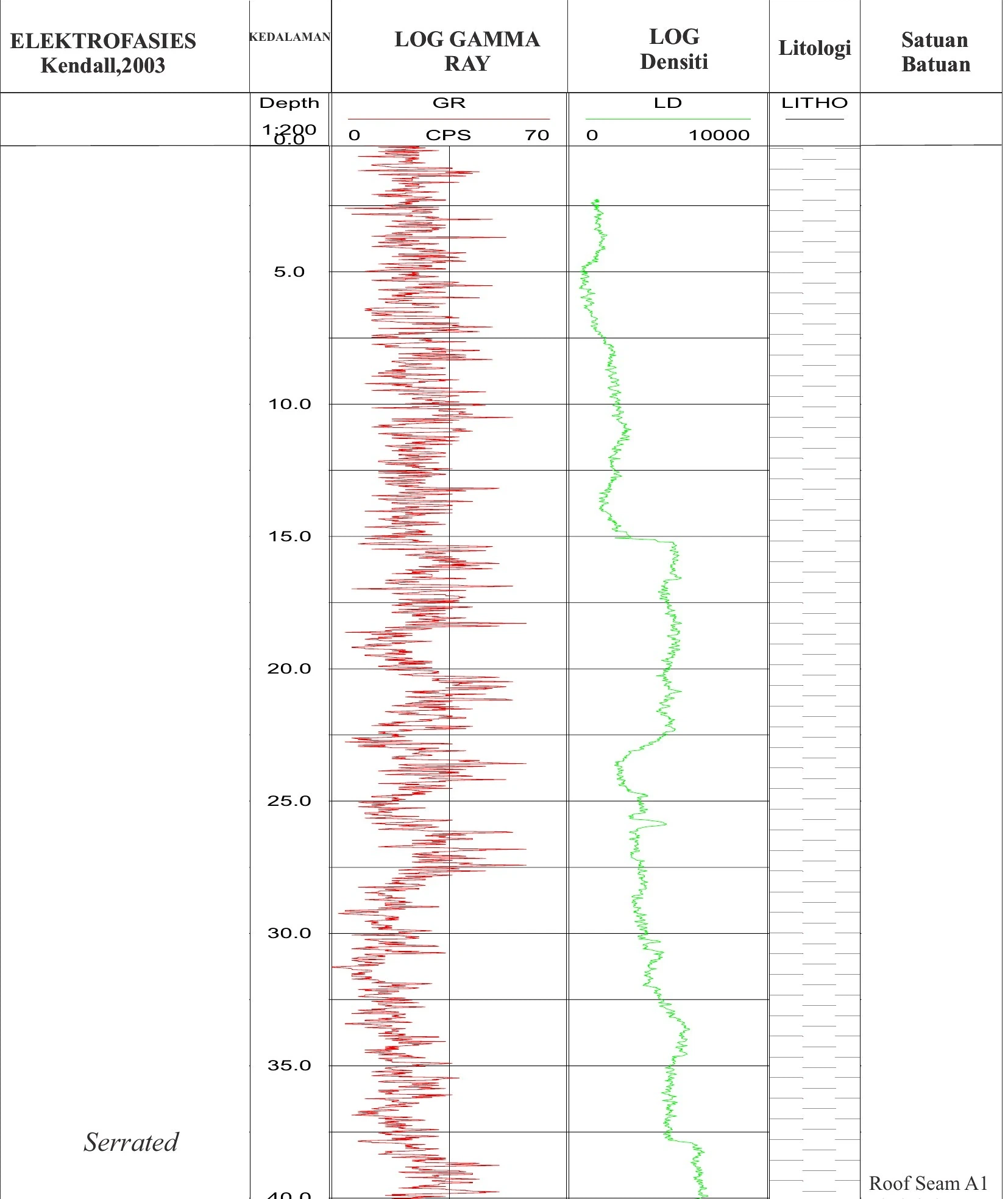

Sheet 40 opens the 5-sheet RTS 06 profile and establishes the track order and scale that must remain unchanged through the following tranches. The thesis places Seam A1 at about 87–96 m and Seam B2 at about 161–165 m in RTS 06.
SOURCE-LED TECHNICAL READING
Geological interpretation and evidential boundary
Sheet 40 opens the 5-sheet RTS 06 profile and establishes the track order and scale that must remain unchanged through the following tranches. The thesis places Seam A1 at about 87–96 m and Seam B2 at about 161–165 m in RTS 06. Those anchors also explain why the blank trailing PDF sheet is excluded rather than interpreted as a missing geological interval. Read the depth column first, then test whether lithology, gamma response and density counts change at the same boundary; a visually attractive curve match that violates core order is not a valid pick. Taken with its neighbouring tranches, RTS 06 Sheet 40 is auditable correlation control—not independent evidence for depositional environment, coal quality or lateral persistence.
