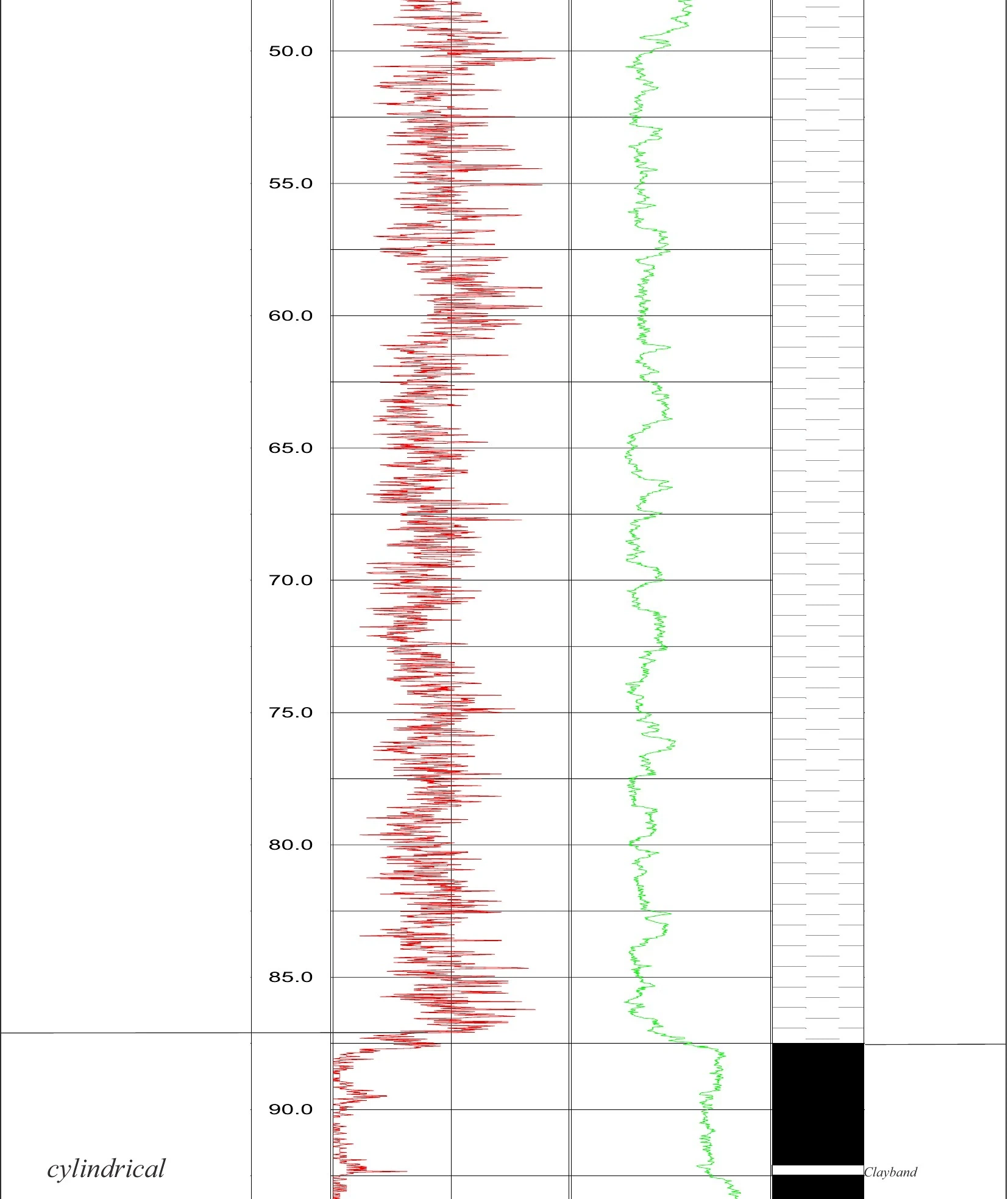

RTS 06 Stratigraphic Panel — Sheet 41
Sheet 41 is tranche 2 of the 5-sheet RTS 06 profile, bounded by Sheets 40 and 42; continuity at both joins is part of the evidence. The thesis places Seam A1 at about 87–96 m and Seam B2 at about 161–165 m in RTS 06.
SOURCE-LED TECHNICAL READING
Geological interpretation and evidential boundary
Sheet 41 is tranche 2 of the 5-sheet RTS 06 profile, bounded by Sheets 40 and 42; continuity at both joins is part of the evidence. The thesis places Seam A1 at about 87–96 m and Seam B2 at about 161–165 m in RTS 06. Those anchors also explain why the blank trailing PDF sheet is excluded rather than interpreted as a missing geological interval. Coal markers are transferred only where the low-gamma interval, density response and core-defined roof and floor remain aligned; short excursions may represent a parting, vertical averaging or a depth mismatch. Taken with its neighbouring tranches, RTS 06 Sheet 41 is auditable correlation control—not independent evidence for depositional environment, coal quality or lateral persistence.
